Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
-
Markeren
ATEX Certificate Gas Injecting System
,Customizable Gas Injecting System
-
VoorwaardeNieuw
-
Toepasselijke industrieënFabriek
-
Gewicht (KG)300
-
Locatie van de showroomGeen
-
video-uitgaande inspectieVoorziening
-
Verslag van de test van de machineNiet beschikbaar
-
Garantie op kerncomponenten1 jaar
-
KerncomponentenMotor, Pomp
-
TypeVerstuiver
-
Garantie1 jaar
-
After-sales service verleendIngenieurs die beschikbaar zijn voor het onderhoud van machines in het buitenland
-
Resolutie0.1 g
-
Spanning380V/50Hz
-
KoelmiddelR22/R410A/R407C/R134A
-
Model NoCM8600 R32 koelmiddel vulsysteem
-
nauwkeurigheid± 0,5%
-
vacuümgraad5 Pa tot en met 10 Pa
-
laadsnelheid60~260g/s
-
ToepassingAirconditioner, waterdispenser, vriezer, koelkast
-
HavenShanghai Ningbo Tianjin Qingdao
-
Plaats van herkomstJiangsu, China
-
MerknaamCM
-
CertificeringCE, ATEX
-
ModelnummerCM8600
-
Min. bestelaantal1 eenheid
-
Prijs$20,400.00/units 1-2 units
-
Verpakking Detailshouten behuizing, pallet voor CM8600 koelmiddelvulmachine
-
Levering vermogen50 eenheden/eenheden per maand
Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Not Available |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| Warranty | 1 Year |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum degree | 5Pa~10Pa |
| Charging speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
CM8600 Dual System Refrigerant Charging Machine for Refrigerator Assembly Line
The CM86 refrigerant charging machine is specially designed for fast speed refrigerant charging at production lines. It features high speed charging, high accuracy, and multiple functions. The machines are compatible with refrigerants of CFC, HFC, HC, etc. The machine can also be customized according to your special requirements.
Key Features
- Adopt CNC technology allowing data processing capability with accurate and easy operation
- Charging/filling liquid gas R134a, R22, R407C, R410A etc. (for R600a, R290, R32 can be customized)
- Siemens PLC and colorful touch screen control system
- High accuracy flow sensors provide precise data with resolution reaching 1~0.1g
- Wonfulay (our own brand) pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging/filling quantity up to 99999g with charging rate of 60g~260g
- Automatic prompt function when refrigerant in the cylinder is low
- Adjustable vacuum time and inspection leak time according to requirements
- Wonfulay (our own brand) filling gun improves charging/filling speed
- Wonfulay (our own brand) high vacuum pump provides quick vacuum reaching 5~10Pa
- Includes vacuum, inspection leak, charging/filling, and refrigerant recovery functions
- Repeat filling accuracy ≤ ± 0.5%
- Easy to move

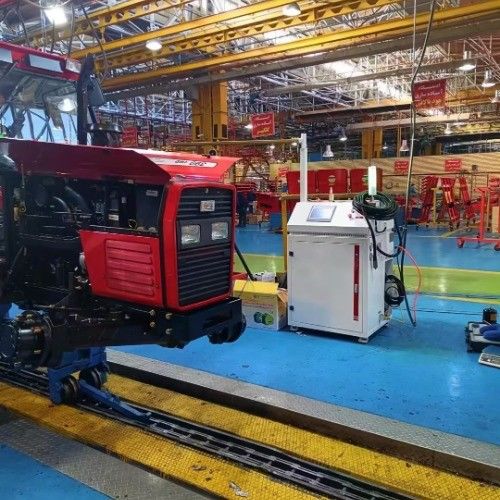

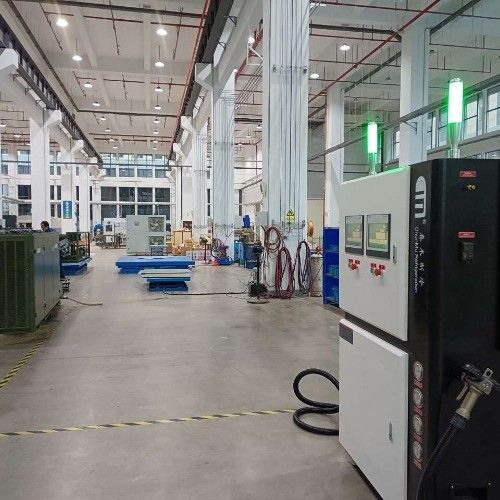

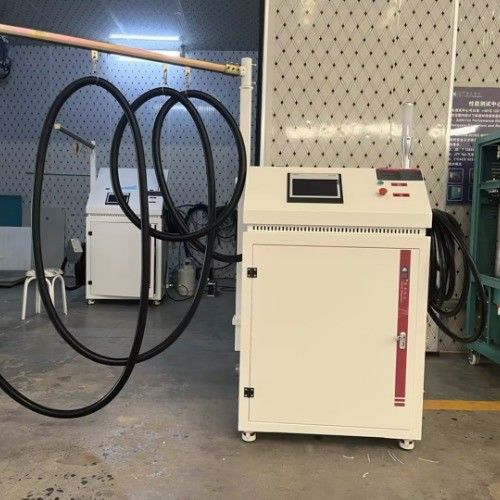

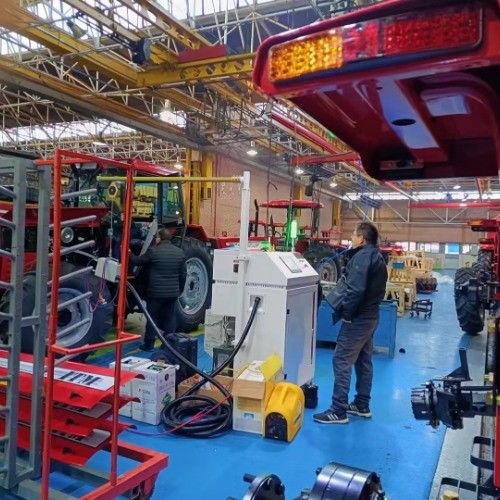

Product Images
