Markeren
AC refrigerant recharge machine
,gas filling system for AC
,refrigerant charging station with warranty
-
VoorwaardeNieuw
-
Toepasselijke industrieënFabriek
-
Gewicht (kg)300
-
Locatie van de showroomGeen
-
video-uitgaande inspectieProvided
-
Machinery Test ReportNiet beschikbaar
-
Garantie op kerncomponenten1 jaar
-
KerncomponentenMotor, Pomp
-
TypeVerstuiver
-
Garantie1 jaar
-
After-sales service verleendIngenieurs die beschikbaar zijn voor het onderhoud van machines in het buitenland
-
Resolutie0.1 g
-
Spanning380V/50Hz
-
KoelmiddelR22/R410A/R407C/R134A
-
ModelnummerCM8600 R32 koelmiddel vulsysteem
-
nauwkeurigheid± 0,5%
-
vacuümgraad5 Pa tot en met 10 Pa
-
laadsnelheid60~260g/s
-
ToepassingAirconditioner, waterdispenser, vriezer, koelkast
-
HavenShanghai Ningbo Tianjin Qingdao
-
Plaats van herkomstJiangsu, China
-
MerknaamCM
-
CertificeringCE, ATEX
-
ModelnummerCM8600
-
Min. bestelaantal1 eenheid
-
Prijs$20,400.00/units 1-2 units
-
Verpakking Detailshouten behuizing, pallet voor CM8600 koelmiddelvulmachine
-
Levering vermogen50 eenheden/eenheden per maand
AC Recharge Machine Gas Filling System
AC Recharge Machine Gas Filling System
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Video Outgoing-Inspection | Provided |
| Warranty of Core Components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| Warranty | 1 Year |
| After-sales Service | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant Compatibility | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum Degree | 5Pa~10Pa |
| Charging Speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
Product Overview

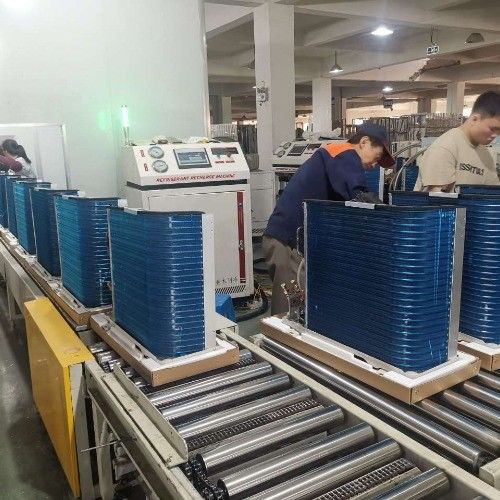

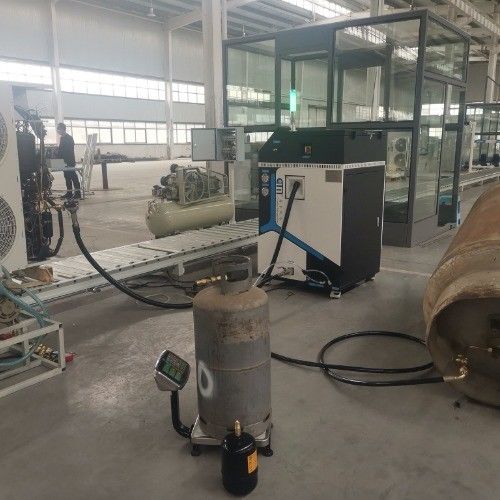

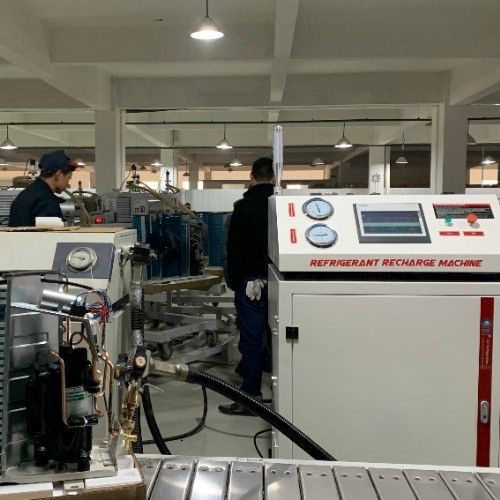

CM8600 Dual System Refrigerant Charging Machine for Refrigerator Assembly Line
The CM86 refrigerant charging machine is specially designed for high-speed refrigerant charging in production lines. It features exceptional charging speed, high accuracy, and multiple functions. Compatible with CFC, HFC, and HC refrigerants, this machine can be customized to meet specific requirements.
Key Features
- CNC technology enables precise data processing with accurate and easy operation
- Charging/filling capability for liquid gases including R134a, R22, R407C, R410A (customizable for R600a, R290, R32)
- Siemens PLC with colorful touch screen control system
- High-accuracy flow sensors provide resolution of 1~0.1g
- Wonfulay pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging capacity up to 99999g with charging rate of 60g~260g
- Automatic prompt function when refrigerant in cylinder is low
- Adjustable vacuum time and inspection leak time
- Wonfulay filling gun improves charging/filling speed
- Wonfulay high vacuum pump achieves quick vacuum of 5~10Pa
- Multiple functions: vacuum, inspection leak, charging/filling, refrigerant recovery
- Repeat filling accuracy ≤ ± 0.5%
- Portable design for easy movement
Product Images
Front View
Control Panel
Side View
Components
Filling Interface
Internal Components
Pneumatic System
Vacuum Pump
